M6210 Cordless, Wireless Barcode Scanning System - Scans up to 150 feet away from base station.

The M6210 cordless or wireless barcode scanning system allows users to add cordless functionality while still retaining the use of existing undecoded, corded scanners. The M6210 is ideal for inventory control, asset tracking, shipping and receiving or any barcode data collection application that requires mobility. The M6210 Cordless Scanning System offers a low cost solution for barcode scanning applications that require the freedom to be cordless, but without the high price of an integrated RF scanner.

M6210 Cordless Barcode Scanning System

Models & Prices
Features & Benefits
Description
Applications
Specifications
Configurations

Back to Cordless scanner list

Part#	Description
M6210-0000	M6000 Portable Decoder & M6200 Base Station - No input device	$445 Qty
M6210WND-CHV904	M6210, Keyboard Wedge Kit, with Champ 7 Mil Wand Scanner, 9-Pin	$490 Qty
M6210CCD-MT6023	M6210, Keyboard Wedge Kit, with MT 6023 CCD Scanner	$615 Qty
M6210CCD-OP0023	M6210, Keyboard Wedge Kit, with Opticon 2.3 inch CCD Scanner	$670 Qty
M6210CCD-OP0032	M6210, Keyboard Wedge Kit, with Opticon 3.2 inch CCD Scanner	$710 Qty
M6210LAS-ME9521	M6210, Keyboard Wedge Kit, with Metrologic 9520 Laser Scanner	$650 Qty
M6210LAS-PS0020	M6210, Keyboard Wedge Kit, with PSC QuickScan 6000 Laser Scanner	$765 Qty
M6210LAS-PS0030	M6210, Keyboard Wedge Kit, with PSC PowerScan Laser Scanner	$995 Qty
M6210LAS-SY0190	M6210, Keyboard Wedge Kit, with Symbol LS1900 Laser Scanner	$815 Qty
M6210LAS-SY0210	M6210, Keyboard Wedge Kit, with Symbol LS2100 Laser Scanner	$830 Qty
M6210LAS-SY0400	M6210, Keyboard Wedge Kit, with Symbol LS4000 Laser Scanner	$880 Qty
M6310WND-CHV904	M6310, USB Kit, with Champ 7 Mil Wand Scanner, 9-Pin	$490 Qty
M6310CCD-MT6023	M6310, USB Kit, with MT 6023 CCD Scanner	$615 Qty
M6310CCD-OP0023	M6310, USB Kit, with Opticon 2.3 inch CCD Scanner	$670 Qty
M6310CCD-OP0032	M6210, USB Kit, with Opticon 3.2 inch CCD Scanner	$710 Qty
M6310LAS-ME9521	M6210, USB Kit, with Metrologic 9520 Laser Scanner	$650 Qty
M6310LAS-PS0020	M6210, USB Kit, with PSC QuickScan 6000 Laser Scanner	$765 Qty
M6310LAS-PS0030	M6210, USB Kit, with PSC PowerScan Laser Scanner	$995 Qty
M6310LAS-SY0190	M6210, USB Kit, with Symbol LS1900 Laser Scanner	$815 Qty
M6310LAS-SY0210	M6210, USB Kit, with Symbol LS2100 Laser Scanner	$830 Qty
M6310LAS-SY0400	M6210, USB Kit, with Symbol LS4000 Laser Scanner	$880 Qty
	M6000 Accessories
M6000-0000	M6000 Portable Decoder - No input device	$235 Qty
M6200-0000	M6200 Keyborad Wedge Base Station	$245 Qty
M6300-0000	M6300 USB Base Station	$245 Qty
CBL-1001	Keyboard "Y" Cable	$10 Qty
CBL-1002	Set of PS/2 Adapters	$10 Qty
MAN-M6000	M6000/M6200/M6300 Manual	$10 Qty
	Extended Warranty
SVC-EW6000	M6000 Extended Warranty (3 Years)	$95 Qty
SVC-EW6200	M6200 Extended Warranty (3 Years)	$95 Qty
SVC-EW6300	M6300 Extended Warranty (3 Years)	$95 Qty

M6210 CORDLESS SCANNER SYSTEM FEATURES & BENEFITS

• Scans up to 150 feet from the host computer (unobstructed line of sight).
• One base supports up to 10 cordless decoder units
• Supports most 5 volt undecoded laser, CCD or Wand scanners
• Audible beep signals each successful scan
• Easily configurable using the Reader Setup Menu - a set of preprinted bar codes supplied with the system.
• Sleep mode conserves battery life on the M6000 portable decoder
• Two year warranty

M6210 CORDLESS SCANNER SYSTEM PRODUCT DESCRIPTION

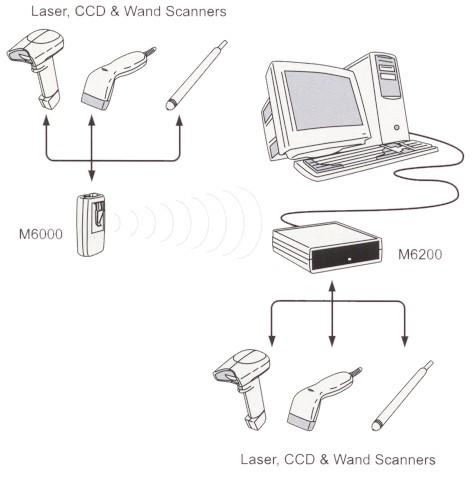

The M6210 Cordless Scanning Systems consists of three (3) components:

• The M6200 Host Base Station
• The M6000 Cordless Portable Decoder
• A low-cost, undecoded scanner

The M6210 cordless bar code scanning system brings the freedom to roam-and-scan, without the high cost of integrated RF scanners. The Model 6210 consists of a Model 6200 base station (Cordless Bar Code Host) and a Model 6000 portable decoder (Cordless Bar Code Decoder). An undecoded laser, wand or CCD is connected to the M6000, allowing the user to scan bar codes and roam up to 150 feet away from the M6200 Host.

The M6000 transmits the scanned bar code data to the M6200 using a radio frequency (RF) data link, where it is converted into PC keyboard data. The Model 6210 system allows many users to retain and use their existing undecoded, corded scanners. It offers an economical solution to users wishing to eliminate the cost and safety risks associated with extension cables.

The M6000 is small, lightweight and easily clips to a pocket opening, belt, or our optional holster. It saves battery life by automatically turning power off after an extended period of no use. An audible beep lets the user know a successful scan has taken place.

The M6210 cordless scanning kit is also available with a variety of scanners including Symbol, PSC, and Metrologic. The Model 6210 Cordless Bar Code System is ideal for inventory control, asset tracking, shipping and receiving or any bar code data application that requires mobility.

M6210 CORDLESS SCANNER SYSTEM APPLICATIONS

The M6210 Cordless Scanning System is ideal for ANY application where bar code scanning activities require a little extra "reach" or even the ability to walk a considerable distance from the host PC.

Point of Sale
M6210 It's ideal in "bulk sale" environments when items are too large to pass across a flat-bed scanner, or to present to a fixed-mount scanner. Cashiers may need to walk around the counter to scan bar codes, but conventional corded scanners won't reach and extension cables are costly, are a common point-of-failure, and can even present a safety hazard. With the M6210 Cordless Scanning System, the checker is free to roam without the hindrance and inconvenience of being "tethered" to the POS system.

Receiving Dock
Use the M6210 Cordless Scanning System to scan bar coded product immediately upon receipt. Information is transmitted to the host application instantaneously. With a range of up to 150' (unobstructed), users can roam throughout most warehouses.

Fixed Assets
Easily move about most office buildings and scan bar coded asset tags located on PC's, printers, copiers, etc. The data is transmitted back to the host PC and placed into an ASCII text file or inserted into a live application via the keyboard wedge interface. Any scanning operation that can be performed easier by removing the "hard wired" connection from the host PC, or that is currently requiring the use of extension cables, is a perfect target opportunity for the M6210 Cordless Scanning System.

M6210 CORDLESS SCANNER SYSTEM PRODUCT SPECIFICATIONS

• Input devices:
Almost any undecoded 5VDC, Laser, CCD, or Wand Scanner with 9-pin D-sub connector

• Communications Frequency:
916.5 MHz, no license required, FCC approved

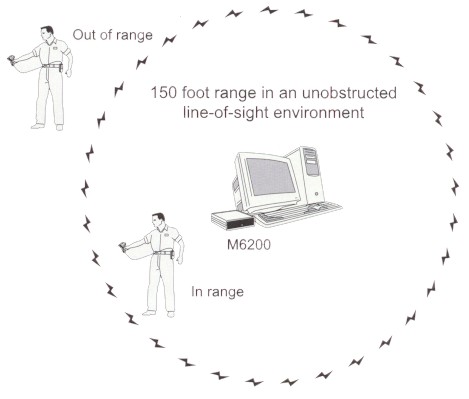

• Range:
Typically 150 feet, unobstructed line of sight environment

• Power Supply:
The M6200 Host is powered from PC keyboard connection
The M6000 portable decoder is powered by a 9V alkaline battery.
After user-selectable idle time, the unit turns off automatically to conserve power.

• Interface:
Connects to the PC as a keyboard wedge device

• Barcodes Supported:
The decoder automatically recognizes and reads the following bar code types: Code 39, Extended Code 39 (full ASCII), Interleaved 2 of 5 UPC-A, UPC-E, EAN-13, UPC and EAN supplements (2 and 5 character), Codabar, Code 128, Code 93, Code 11 and MSI/Plessy

• Configuration:
Configuration is done by scanning barcodes on the Reader Setup Menu, supplied with the system

• Dimensions:
M6000: 5 1/8"L x 2 3/4"W x 1 1/2"H
M6200: 5 1/4"L x 5 1/8"W x 1 1/2"H

• Weight:
M6000: 5 oz (with battery)
M6200: 14 oz

• Expansion:
Up to ten (10) M6000 portable decoders can be used with a single M6200 Host

M6210 CORDLESS SCANNER SYSTEM CONFIGURATIONS
