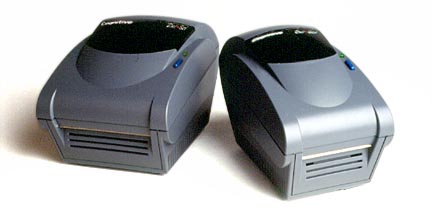

Cognitive DelSol Barcode Printer
DelSol Barcode Printer delivers rugged thermal transfer labels or economical direct thermal labels in seconds.
Advanced memory management and large memory capacity let the DelSol print complex labels fast.
  • Rugged and reliable• Direct thermal and thermal transfer • User-replacable wear parts, incl. printhead • 4.25" wide labels or tags • Small footprint • Massive 7" OD (500 ft long) label roll option • 10 mil tag stock • Built-in e+Solutions Ethernet port option • Standard serial and parallel ports |
DelSol Barcode Labels DelSol Printer Ribbons Printer Specifications |
Discontinued, See Advantage LX Printer
| Cognitive DelSol Printer Description |
Versatile Desktop Barcode Printer DelSol is the most versatile 2" and 4" printer family available. Small and fast, DelSol delivers rugged thermal transfer labels or economical direct thermal labels in seconds. Large media capacity, easy access loading, and user replaceable conveniences further assure maximum productivity. |
| COGNITIVE DELSOL PRINTER SPECIFICATIONS |
| Model | DD24 & DT24 | DD42 & DT42 | |
| Method | DD: Direct Thermal DT: Thermal Transfer |
DD: Direct Thermal DT: Thermal Transfer |
|
| Width (Max.) | 2.1" 56mm | 4.1" 104mm | |
| Length(Max.) | 40" 1016mm @ 203 dpi 160" 4,064mm @ 101 dpi |
20" 513mm @ 203dpi 80" 2,032mm @ 101dpi |
|
| Speed(Max.) | 3 ips (76 mm/sec) | 3 ips (76 mm/sec) | |
| Resolution | Selectable 101 and 203 dpi | Selectable 101 and 203 dpi | |
| Mechanism | ABS Blend | ABS Blend | |
| Media | Width | .75"-2.4" 19-61mm | 1"-4.3" 25-109mm |
| Roll Diameter | 5" standard, user-configurable up to 7.0" (127mm - 203mm) | ||
| Ribbon Length | 5500" 140mm (TT models) | 5500" 140mm (TT models) | |
| Indexing | Black bar, notch, gap | Black bar, notch, gap | |
| Barcodes | Supported Barcodes | 21 standard and two-dimensional bar codes, including: UPC, EAN, EAN128, Code39, Plessey, MSI/MSI1, Code16K, Code128, Codabar, Maxicode, PDF417, Code93, I2of5 | |
| Fonts | Bitmapped | 7 styles with up to 10x10 magnification, variable boldness and spacing | |
| AGFA | Sans-serif font in 7 pt. sizes, up to 4x4 magnification, variable boldness and spacing | ||
| Scalable Smooth Fonts | 3 Ultra Font styles for smooth characters in any size and boldness | ||
| Rotations | 0, 90, 180 and 270 degrees | 0, 90, 180 and 270 degrees | |
| Graphics | Features | Foreground and background logos and graphics | |
| Formats | PCX, BMP | PCX, BMP | |
| Memory | RAM | 512 KB | 512 KB |
| Non-volatile | 512KB + 2MB or 4MB options | 512KB + 2MB or 4MB options | |
| Communication | Standard | Serial or Parallel | Serial or Parallel |
| Non-volatile | Built-in e+Solutions Ethernet option | Built-in e+Solutions Ethernet option | |
| Environmental | Electrical | 100, 120 or 230VAC, 50/60Hz | 100, 120 or 230VAC, 50/60Hz |
| Operating | 41 °F to 104°F, 5°C to 40°C, all models | 41 °F to 104°F, 5°C to 40°C, all models | |
| Storage | -4°F to 122°F, -20°C to 50°C, 25%-85% non-condensing, RH, all models | ||
| Dimensions | Width | 4.5" 114mm | 7" 177.8mm |
| Height | 7" 177.8mm | 7" 177.8mm | |
| Depth | 10" 254mm | 10" 254mm | |
| Weight | 3.1 lb 1.41kg | 3.5lb 1.59kg | |
| Accessories | Supplied | Companion CD-ROM, power supply, Windows® drivers, Quick Start Guide, Programmer's Guide, label design software | |
| Optional | Label dispenser, label cutter, 2MB and 4MB Flash memory expansion, Ethernet connectivity, real-time clock, Kanji character set | ||
| Life | Printhead | 2,000,000 inches, 50km | 2,000,000 inches, 50km |
| Warranty | 1 years | 1 years | |
